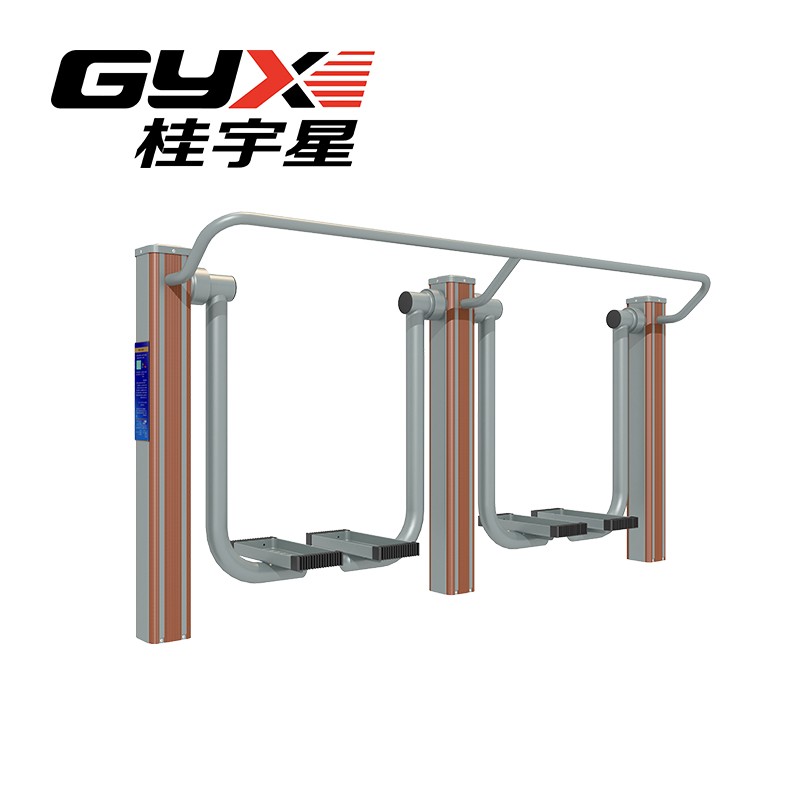

WPC Outdoor Exercise Equipment Post Style Double Steps Air Walker Exporter China

Specification:

Main Function: Enhance cardiopulmonary function and lower limbs and waist muscles; improve the flexibility and coordination ability of the lower limbs; provide joint stability of the joints of the lower limbs.

How to use: Hold the horizontal rod with your hand, stand on the pedal, raise your chest upright, and stand upright. Both legs are imitated straight and swinging naturally, and you can adjust the strength by adjusting the amplitude and frequency of swing.

The straight -buried type, the main column is 80mm*120mm, and the wall thickness is not less than 3mm of standard rectangular pipes.

With inserted aluminum alloy materials with plastic wood profiles, the overall shape size of the column is not less than 120*120mm.

◆ The national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm is directly welded with the pedal, which is firm and durable.

◆ The pedal is 4mm thick cold plate stamping to ensure 8 years of service life and have anti -slip measures to avoid stepping on slipping

Successful damage, the edge height of the pedal perimeter is greater than 30mm, the circular corner R2 in the circumference, buffer pads in front and back of the pedal to avoid personal injury;

◆ The armrest tube adopts a national standard steel pipe with a diameter of 42mm and a wall thickness of 3mm, which is connected to the column bolt;

◆ Limit the 内 102 internal limit structure, the impact pad is made of polyurethane material, which is anti -impact, good elasticity, anti -aging, high and low temperature, welding of shaft end and column The impact test requirements, the one -sided swinging angle of the left and right swinging angles is less than 65 degrees, and all the exposed edges are all R3 chamfering to reduce collision damage;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The top of the column is closed, and the buckle is stamped with a 2mm thick steel plate to avoid entering the rain;

◆ The nameplate of the equipment is sturdy and the edges are tightly attached to the columns to avoid causing hook damage;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ Equipment conducts relevant static load, stability, impact, and fatigue test in accordance with the GB19272-2011 standard, and meets the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ Equipment columns are buried in depth of not less than 400mm, and the size of the ground is not less than 400*400*500mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment system, purify the air of the workshop, ensure the health of the workers, the surface treatment uses the shot shot shot Plastic powder adhesion, green environmental protection static powder on the outside, uses imported electrostatic spraying equipment, uniform powder out, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and acid rain environment The coating formula of the product does not contain toxic elements. Powder recovery adopts a whirlwind centrifugal machine powder pink recovery system. The recovery rate can reach 98.6%.

◆ Equipment packaging is a double -layer packaging, which effectively blocks bumps in the transportation to cause the equipment to be intact.
