WPC Outdoor Fitness Equipment Taichi Spinners for Sale

Specification:

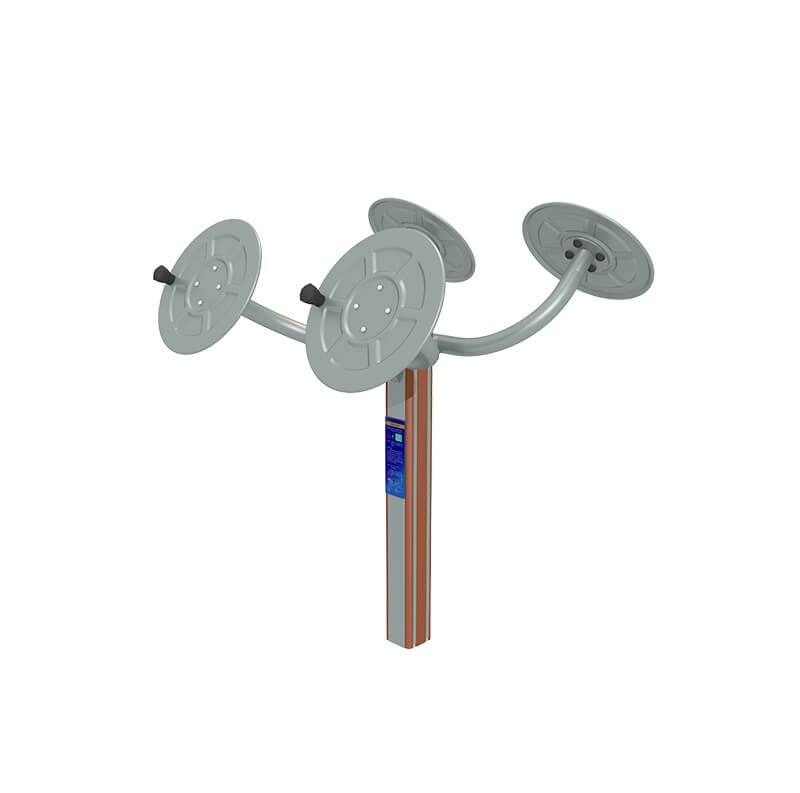

Product name: Shoulder joint rehabilitation device

Product model: GYX-M05B

Product specifications: 1293 × 1170 × 1379 (mm)

Scope of safe use: 4300 × 4200 (mm)

How to use: Hold the handle tightly with both hands, slowly rotate the ring in the same direction or in the opposite direction, and repeat the movement.

Product function: Enhance the strength of the shoulder strap muscles and improve the flexibility and flexibility of the shoulder joints, elbow joints, and wrist joints.

【The main technical parameters】:

◆ Direct buried type, the main column uses 100mm*100mm, and the wall thickness is not less than 3mm of standard rectangular pipes. The sides of the columns use aluminum alloy profiles, the thickness of the profile is greater than 2mm, and the other sides use plug -in plastic wood profiles. The wall thickness is greater than 5mm. The overall shape of the column is not less than 128*128mm.

◆ The cantilever pipes adopt a national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm. The beam pipes adopt a national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm;

◆ The turntable is made of PE material. There is no hook, the middle skeleton is rich, the diameter of the turntable is 600mm, and the two turntable spacing is 250mm;

◆ Internal use of the two bearing to increase the damping structure of nylon -resistant nylon in the intermediate, control the rotation speed of the turntable to ensure the personal safety of the user.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ Equipment nameplate is corroded with full stainless steel, which contains a QR code and NSCC logo. The size is 220*80mm, the wall thickness is 0.45mm, the pull rivets are strong, the edges are close to the columns to avoid hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ The depth of the equipment is not less than 500mm, and the size of the land is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment system, purify the air of the workshop, ensure the health of the workers, the surface treatment uses the shot shot shot Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
