Back exercise GYX-L20A Supplier

Specification:

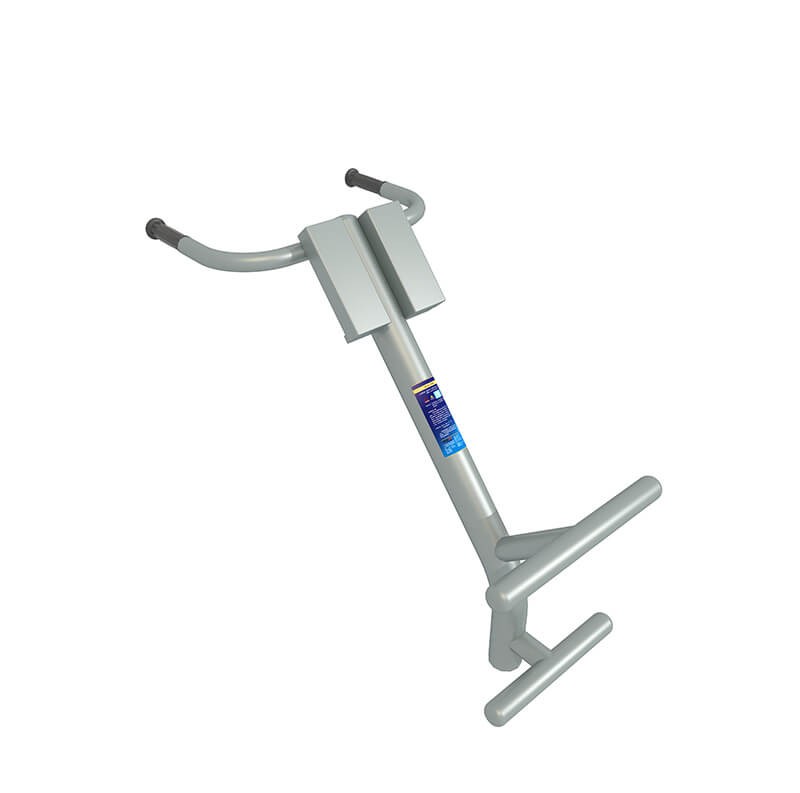

GYX-L20A Back Exercise

【Specification】: 1008 × 682 × 1028mm

[Scope of safe use]: 4050 × 3700 (mm)

[How to use]: Facing the equipment stand, hold the armrests on both sides with both hands, close the abdomen tightly on the upper end of the trainer, and place your feet on the two layers under the training device. Place behind the neck or cross, bend down, raise exercises, and repeatedly exercise.

[Main functions]: Enhance the stretching force of back muscles and abdominal muscles, strengthen the coordinated and coordinated ability of back small muscle groups, increase the flexibility and flexibility of back muscle exercise, and effectively improve the exercise endurance of the back muscles.

【The main technical parameters】:

◆ Direct buried type, the column adopts a national standard steel pipe with a diameter of 88mm and a wall thickness of 3mm;

◆ The handrail is used to use tube retractable technology, which shrinks the pipe with a diameter of 42mm to 32mm in diameter in order to install the handle. This method is good in overall, beautiful in appearance, convenient processing, and durable;

◆ The national standard steel pipe with a specification of 100mm*50mm and a wall thickness of 2mm adopts a national standard steel pipe with a wall thickness of 2mm.

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, which can be used only 1 person;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment adopts a fully automatic CNC sawing bed, which is highly efficient and accurate. Skinidity treatment is performed before the equipment is welded to ensure that the surface of the workpiece has no oil and pollution. Follow and equip the dust collection and treatment system to purify the air of the workshop to ensure the health of the workers. The surface treatment uses the shot shot shot, which is thoroughly removed, the surface area of the workpiece is increased, and the plastic powder attachment is enhanced. Imported electrostatic spraying equipment, uniform powder out, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and acid rain environment. The cyclone centrifugal powder pink recovery system can reach 98.6%, saving powder to reduce dust pollution, convenient operation, energy saving and environmental protection;

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
