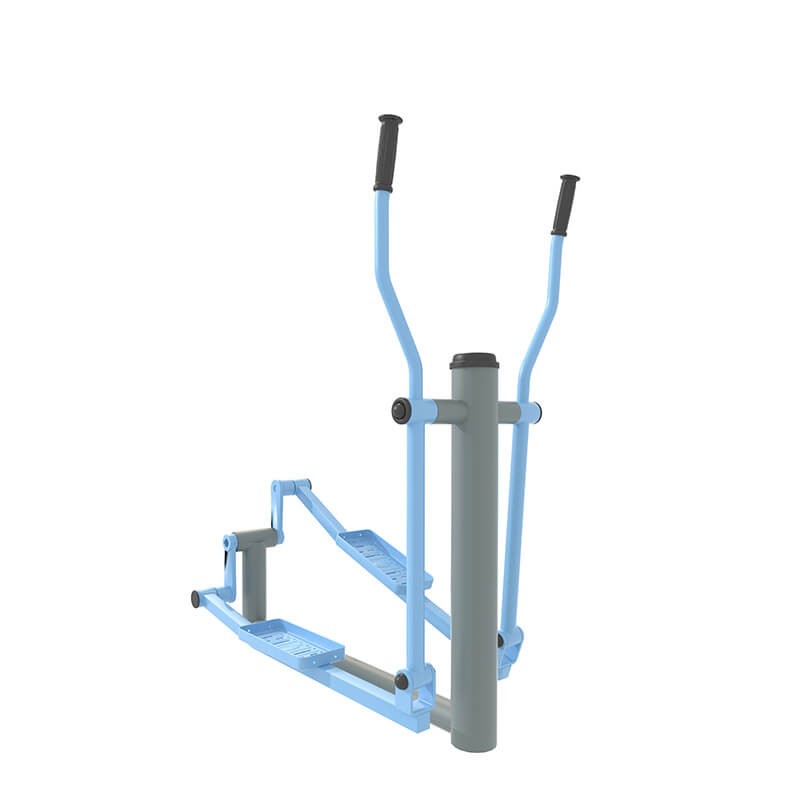

High Quality Elliptical Cross Trainer GYX-L40A

Specification:

GYX-L40A Elliptical Cross Trainer

[Specification]: 1450 × 673 × 1394 (mm)

[Scope of safe use]: 4500 × 3700 (mm)

[How to use]: The user steps on the pedal with both feet, holding the handle with both hands, standing upright, and looking ahead. Cooperate with your hands and feet, turn the pedals, and swing at the same time. On one side, the handle is pulled back on the other side, and vice versa. Hands and feet are at the same time

[Main function]: Enhance the muscle strength and muscle endurance of the upper limbs, waist and abdomen, and lower limbs, and improve the ability to coordinate the whole body and exercise at the same time. Long -term exercise can effectively improve the cardiopulmonary function of the human body, improve cardiovascular function and ventiic function, and improve the metabolic level of the human body. It is a device with higher value -mounted value.

【The main technical parameters】:

◆ The straight -buried type, the front column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm; the back column uses a national standard steel pipe with a diameter of 88mm and a wall thickness of 3mm;

◆ The national standard steel pipe with a bearing diameter of the main frame is 60mm and the wall thickness is 3mm. The diameter of the axis is 28mm. The rear axis is 73mm in diameter and a seamless tube of the wall thickness, so that the equipment has higher strength to withstand.

◆ The armrest uses a national standard steel pipe with a diameter of 32mm wall thickness 2.5mm. The diameter of the connection rod is 42mm and the wall thickness is 2.5mm. And use four high -quality 6004 bearings respectively;

◆ The rod connecting rod uses a square tube of 40*40*2.5. The shaft sleeve uses a seamless tube with a diameter of 60mm and a wall thickness of 7mm, connecting the wall thickness of 8mm.

◆ The pedal is 4mm thick cold plate stamping to ensure 8 years of service life and have anti -slip measures to avoid the damage of personnel from stepping on slipping.

◆ The wall thickness of the crank is 14mm, and one end of the axis is made of 65mm round steel in diameter.

◆ The main axis adopts a diameter of 35mm round steel processing bearing position in diameter 30mm, and two high -quality 6206 bearings are used;

◆ Internal use of two bearing to increase the damping structure of nylon -resistant nylon in the intermediate, control the speed of rotation, ensure the personal safety of the user, and ensure the use requirements;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ Equipment conducts relevant static load, stability, impact, and fatigue test in accordance with the GB19272-2011 standard, and meets the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, but one person can be used at the same time;

◆ Equipment columns are buried in depth of not less than 400mm, and the size of the ground is not less than 400*400*500mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
