Elliptical Stepper Cross Trainer GYX-L41 Supplier

Specification:

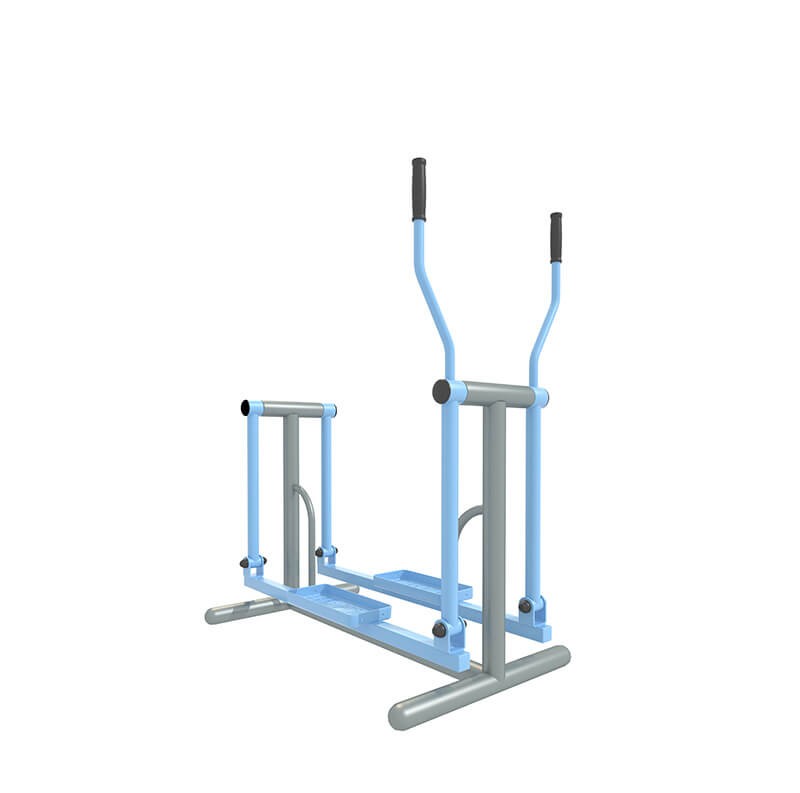

GYX-L41 Elliptical Stepper Cross Trainer

【Specification】: 1600 × 676 × 1362mm

[Scope of safe use]: 4600 × 3700 (mm)

[How to use]: The user stands on the pedal, holds the handle with both hands, cooperates with hands and feet, the pedal swings at the same time, push the handle on one side, and pull the handle back to the other hand to repeat the movement.

[Main functions]: Enhance the muscle strength of the user's upper limbs, waist and abdomen, and lower limbs, improve the coordination ability of hands and feet, and improve the cardiopulmonary function of the human body.

【The main technical parameters】:

◆ The straight -buried type, the two columns with a diameter of 88mm and a wall thickness of 3mm are used in the front and rear pillars;

◆ The main stand -up beam adopts a national standard steel pipe with a diameter of 76mm and a wall thickness of 3mm; the main frame in diameter of the main frame is 102mm and the wall thickness is 5mm. Equipment has higher strength tolerance;

◆ The handrail adopts a national standard steel pipe with a diameter of 32mm wall thickness 3mm. The diameter of the connection rod is 42mm and the wall thickness is 2.5mm. Four high -quality 6004 bearings are adopted;

◆ The stepping rod connecting rod uses a square tube of 40*40*2.5, and the shaft sleeve adopts a seamless tube with a diameter of 60mm and a wall thickness of 7mm;

◆ The pedal is 4mm thick cold plate stamping to ensure 8 years of service life and have anti -slip measures to avoid the damage of personnel from stepping on slipping.

◆ The upper and lower bearing sets of the rear rod adopt a seamless tube with a diameter of 60mm, 50mm, and 7mm in wall thickness, and four high -quality 6205 bearings and four high -quality 6004 bearings are used.

◆ The main axis is processed with a diameter of 28mm, and the bearing position diameter is 25mm;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ Equipment conducts relevant static load, stability, impact, and fatigue test in accordance with the GB19272-2011 standard, and meets the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, but one person can be used at the same time;

◆ Equipment columns are buried in depth of not less than 400mm, and the size of the ground is not less than 400*400*500mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
