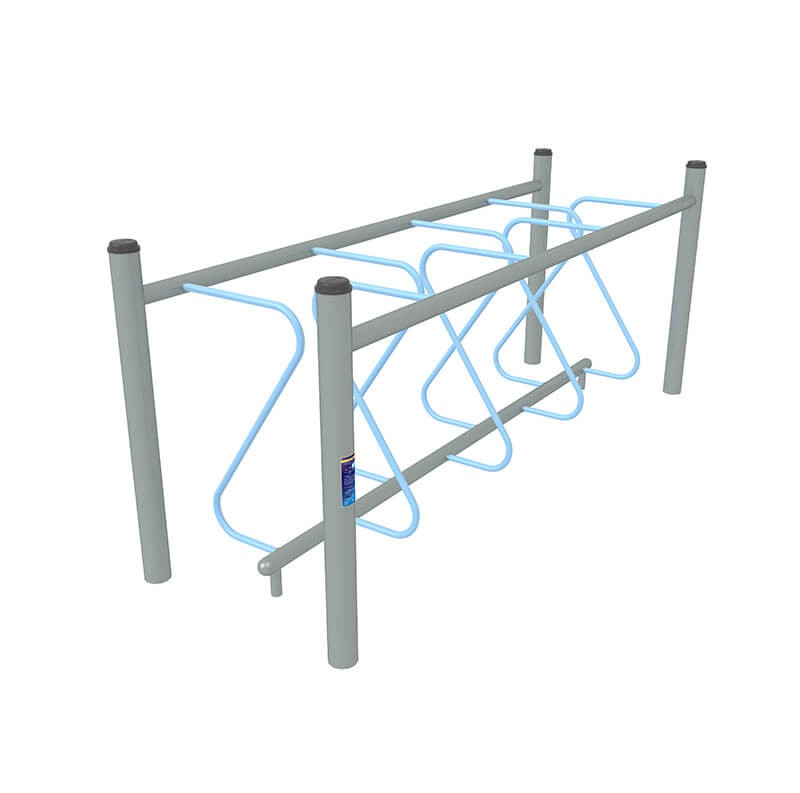

Hula Bridge GYX-L22 Wholesale

Specification:

Gyx-l22 twisting waist trail

[Specification]: 3063 × 1265 × 1119mm

[Scope of safe use]: 6100 × 4300 (mm)

[How to use]: Hold the handrails on both sides with both hands, step on the horizontal tube, look up, look the front, relax the upper body, drive the waist to twist with the hip joint, make the body around the "S" tube, and walk from one end of the twisting trail to the end of the trail to One end.

[Main functions]: Increase the flexibility and flexibility of the waist, back, leg muscles and ligaments, and improve the ability of the human body to control and maintain balance during exercise during exercise.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The handrail S curves use a national standard steel pipe with a diameter of 32mm and a wall thickness of 2.5mm. The Sirwriting spacing is 290mm, the pedal rod is 88mm in diameter, 3mm of wall thickness, and the crossbars with a diameter of 60mm and 3mm wall thickness. 1145mm;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ Close treatment at the top of the column to avoid entering the rain;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
