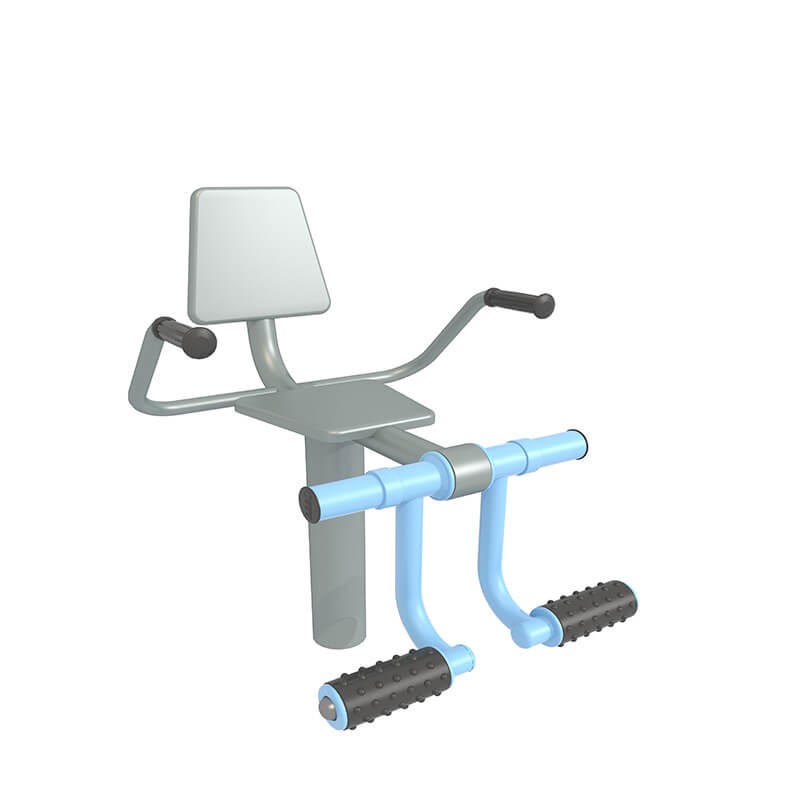

High Quality outdoor fitness equipment Leg lifter GYX-L27A

Specification:

GYX-L27A Leg lifter

[Specification]: 885 × 712 × 975 (mm)

[Scope of safe use]: 3800 × 3700 (mm)

[How to use]: The user is sitting on the seat plate, holding the armrest with both hands, and the legs are naturally drooping in front of or behind the massage stick.

[Main function]: Massage leg muscles, enhance the flexibility and flexibility of the knee joint.

The main technical parameters:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The seat bending pipe adopts a national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm. The hand armrest handle is used to reduce the pipeline technology to shrink the pipe with a diameter of 42mm to 32mm in diameter in order to install the handle. Convenient, durable;

◆ Limitation uses the inner limit structure of cast steel, and the impact pad is made of polyurethane material. It anti -impact, good elasticity, anti -aging, high and low temperature, maximum outer round size is 102mm, wall thickness is 5mm, shaft end and column welded, suits With the leg welding, the 4 high -quality 6205 bearings are used, the diameter of the middle rotation shaft is 25mm, the left and right swing angle is left and right, and the outflow of the exposed edge is R3 to reduce the collision damage;

◆ The whole machine bearing waterproof pad adopts a special skeleton oil seal waterproof pad. It is well closed, waterproof and dustproof, and durable;

◆ The massage stick is made of PVC, with moderate surface hardness, 182mm in length, 75mm diameter, a massage point diameter of 13mm, and a massage point height of 3mm, which meets the requirements of human massage;

◆ The handlebar is made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures to be safe and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, and only one person can be used at the same time;

◆ The depth of the equipment is not less than 500mm, and the size of the land is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
