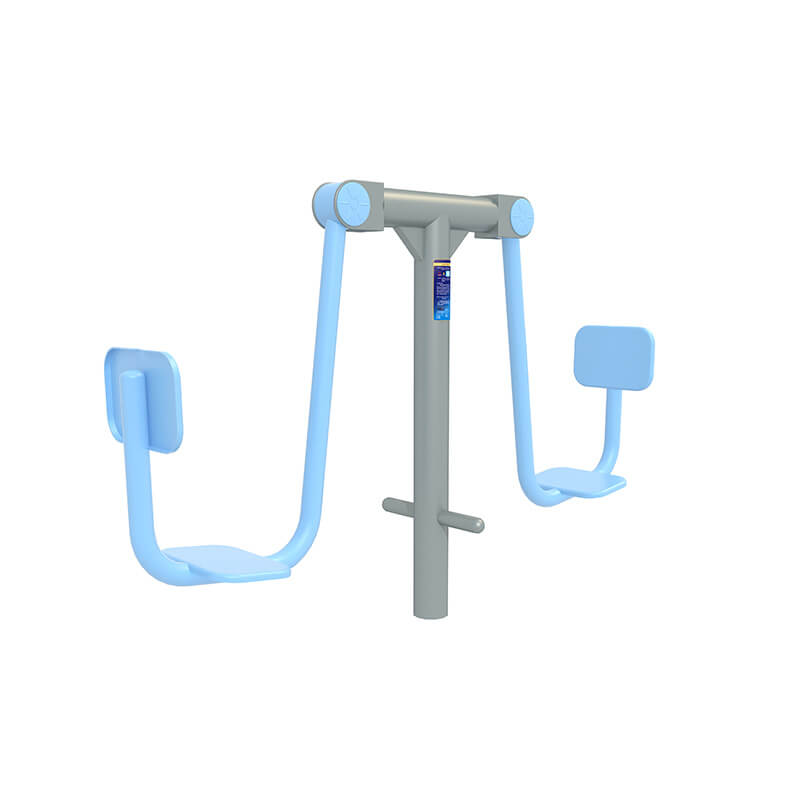

Outdoor fitness equipment Leg Press GYX-L08B Factory China

Specification:

GYX-L08B Leg Press

【Specification】: 2020 × 598 × 1590mm

[Scope of safe use]: 6100 × 3600 (mm)

[How to use]: Sit on the device, stretch your legs hard, and then slowly restore.

[Main function]: Enhance the strength of the lower limbs and improve the stability of the knee and ankle joint.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The two -limit support beam adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm.

◆ The national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm is used for one time.

◆ The national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm is used.

◆ The seat plate is a 4mm thick cold plate stamping to ensure the 8 -year service life, the circular rounded R2 in the circumference, avoid personal injury;

◆ Limit the three -sided impact internal limit of full casting steel, increase the area of force, and use polyurethane materials for impact pads. , Limit the thickness of the side board is 8mm, the diameter of the limited level is 133mm, the length is 80mm, and the thickness is 8mm.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ There is a non -skid device at the foot of the feet to avoid the harm of the personality;

◆ The distance between the equipment swing arm and the column is greater than 230mm, and the distance from the bottom surface to the ground to the ground to the ground is 410mm;

◆ Close treatment at the top of the column to avoid entering the rain;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column.

Avoid hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ The depth of the equipment is not less than 500mm, and the size of the land is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
