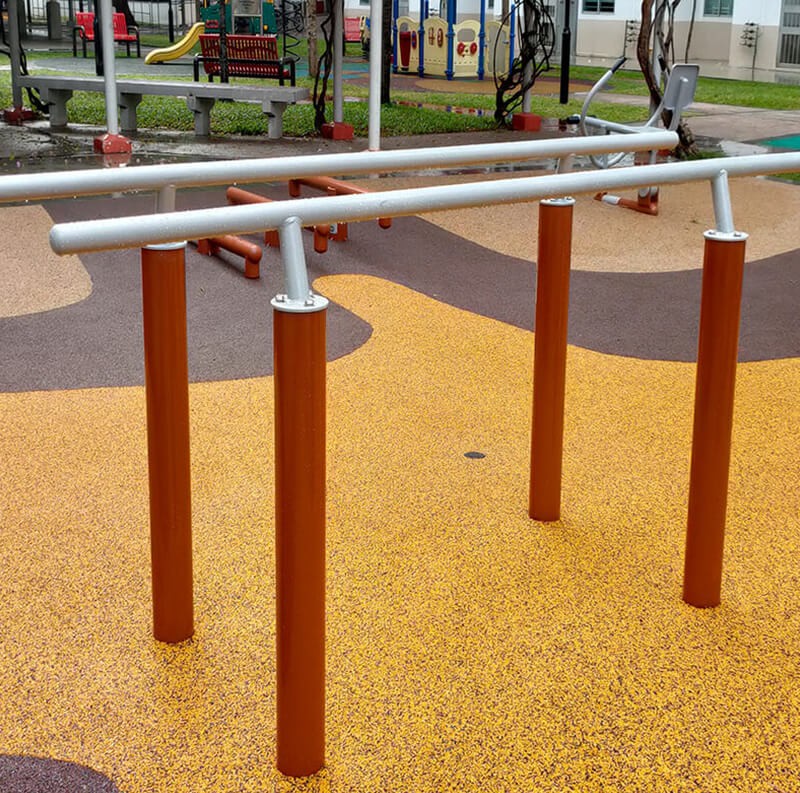

Parallel Bars GYX-L16T Factory China

Specification:

GYX-L16T Parallel Bars

[Specification]: 2400 × 768 × 1404 (mm)

[Scope of safe use]: 5400 × 3800 (mm)

[How to use]: The hand holding the bars and both arms support the body at the same time, and then do the movements of the elbow flexion and straight arm (the arm flexion and extension), and repeat the movement.

[Main functions]: Enhance the strength and flexibility of the upper limbs, shoulder straps, chest, abdomen and back muscles, provide stability of the upper limb joints, and improve coordination and balance.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm. The horizontal spacing of the column is 654mm.

The spacing is 1400mm;

◆ The horizontal bar is a national standard steel pipe with a diameter of 48mm and a thickness of 2.5mm. The length is 2400mm. The support pipe is 48mm.

The thickness of 3mm national standard steel pipe, connected to the pillar connection, is connected to a disc, 3 M12 stainless steel anti -theft bolts

Solid, add bomb pads at the bottom of the bolt to stop, and use a disc diameter of 125mm and a thickness of 8mm.

Avoid entering rain, the chamfering of the peripheral r3, the two horizontal bar spacing is 564mm, the height of the ground is 1404mm, and the national standard

beg;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column.

Avoid hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets GB19272-2011

standard;

◆ Equipment columns are not less than 500mm in depth, and the burial size is not less than 600*600*500mm;

◆ The thickness of the buffer layer is 200mm, which is more secure and reliable to avoid accidental damage;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate.

Ensure that the surface of the workpiece is not stained without oil. The welding uses carbon dioxide protection welding machine with mixed gas welding and welded

Beautiful appearance, straight welding road, no need to polish, and equipped with dust collection and treatment system, purify the air of the workshop, keep

The securities worker is healthy, and the surface treatment uses the shot shot shot shot, which is thoroughly removed, increases the surface area of the workpiece, and enhances

Plastic powder adhesion, the outside of the Forbidden City Green and Environmental Protection Static Powder, uses imported static spraying equipment, and the powder is out

Uniform, the powder has strong adhesion, the plastic surface is resistant to acid and alkali, humidity resistance, anti -aging, corrosion resistance, beautiful appearance, suitable for tide

Wet and sour and rainy environment, the coating formula of the product does not contain toxic elements, powder recycling uses a whirlwind centrifugal machine powder

The recycling system can reach 98.6%, saving powder to reduce dust pollution, convenient operation, energy saving and environmental protection;

◆ Equipment packaging is an internal thickened air bubble film wrapping, two -layer packaging with an external packaging with wrapped, effectively blocking transportation

Middle -class bumps make the equipment intact.
