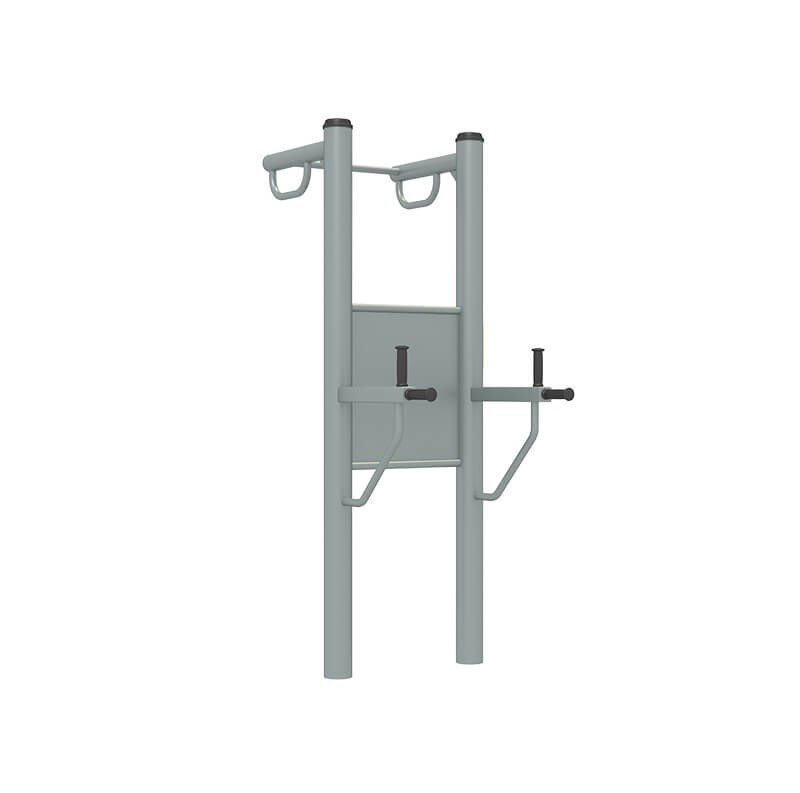

Manufacture Pull-up and Leg Rise GYX-L23

Specification:

GYX-L23 combined trainer

[Specification]: 1453x843x2340 (mm)

[Scope of safe use]: 5250x4650 (mm)

[How to use]: Tingled side: Holding, holding against each other, holding your hands tightly and pulling up, slowly restore and repeat the movements.

Arms support: The practitioner holds the handrail with both hands, supports his arms, then bent his arms at the same time, his legs straighten, your body is oblique into a straight line, so that the bar surface reaches the chest position, and then the arms are quickly straightened (hold hands tightly with both hands tightly with both hands (hold hands tightly with both hands tightly with both hands tightly. House, prevent falling), repeat exercise.

[Main functions]: Enhance the muscle strength of the upper limbs, chest and shoulders to improve flexibility, especially enhanced the strength of bougainvillea, biceps and triceps, improve the supporting force of the upper limbs and wrist muscles and the bone of the upper limb bone Range capacity, improve the ability of shoulders, elbows, wrists, and finger joints, and improve the coordination of human movement and the ability to coordinate and coordinate the whole body.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm; the beam of the leading shelf is 88mm in diameter and the wall thickness is 3mm. 2.5mm high -quality square tube;

◆ The biochemical handle and arm support armrest tubes are national standard steel pipes with a diameter of 32mm and a thickness of 3mm.

◆ The middle backboard is 3mm steel plate, and the cross -horizontal pipe is connected to the national standard steel pipe with a diameter of 32mm and a thickness of 3mm;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 185*80mm, the pull rivets are strong, the edges are close to the column to avoid causing hook damage;

◆ The column hat uses external buckle type to avoid entering the rain;

◆ The four puts are made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures, safe and durable, and the diameter of the end of the hand is greater than 50mm.

◆ The equipment is tested in accordance with the GB19272-2011 standard, and the stability test is tested, and the standard requirements are met;

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The thickness of the buffer layer is 200mm to avoid accidental damage to users;

◆ The size of the land is not less than 500*500*900mm;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
