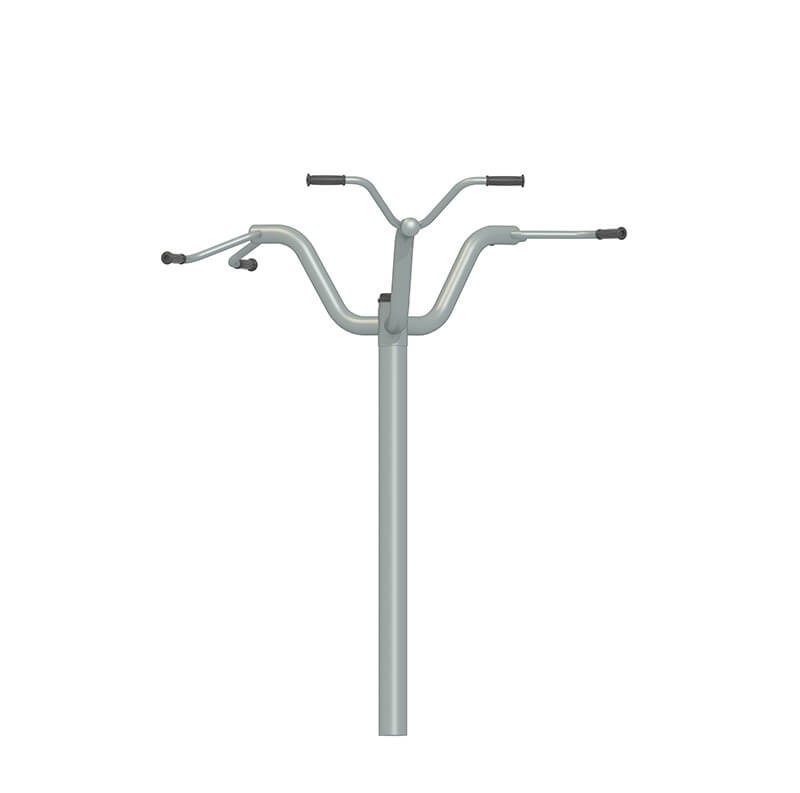

Outdoor Gym Custom Pull-up Station GYX-L30C

Specification:

GYX-L30C Tinge frame

[Specification]: 1469 × 1307 × 2304 (mm)

[Scope of safe use]: 5550 × 5400 (mm)

[Usage method]: Holding, holding or holding the handle of the handle with both hands and pulling the handle, slowly restore and repeat the movements.

[Main functions]: Enhance the strength and flexibility of the upper limbs, back, shoulder strap muscle groups; improve the ability of shoulder, elbow, wrist, and joint movement.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The large set is 128mm in diameter, the wall thickness 6mm standard seamless tube, firm and durable, and the three main frames of the peripheral pipe are all cloth. Steel Pipe;

◆ The handlebar is made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures to be safe and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ The depth of the equipment is not less than 900mm, and the size of the land is not less than 500*500*1000mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
