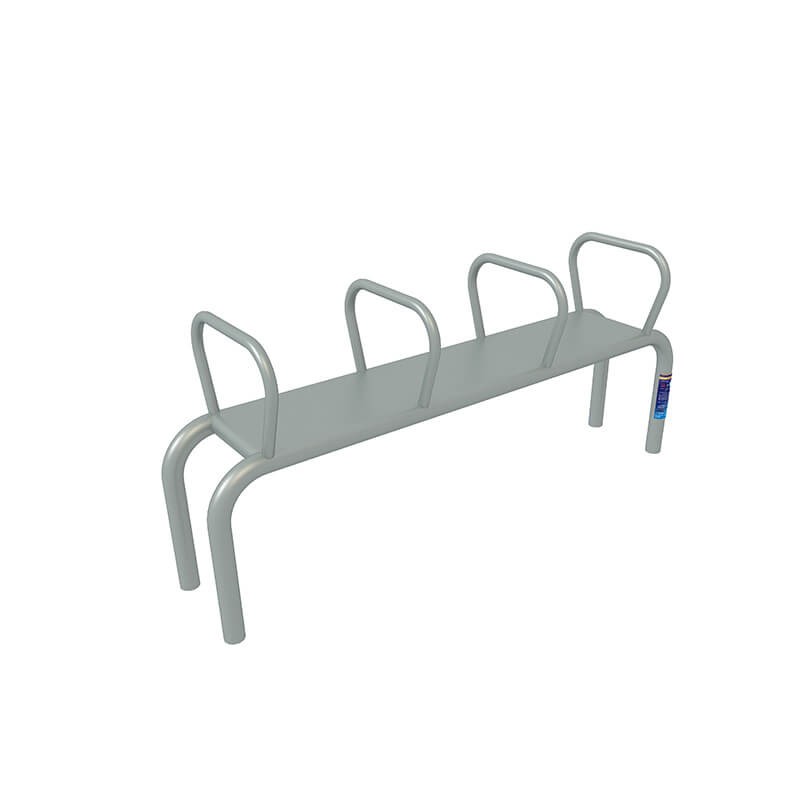

Outdoor Gym equipment Sale Side horse GYX-L18

Specification:

Gyx-l18 saddle horse training device

[Specification]: 2070 × 540 × 785mm

[Scope of safe use]: 5100 × 3600 (mm)

[How to use]: Hold both hands on both sides of the saddle trainer with both hands, support the body, and do various rotations, swing, and translation exercises on it.

[Main functions]: Enhance the coordination of the arms and the body of the body.

【The main technical parameters】:

◆ The straight -buried type, the main frame bending tube adopts a national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm;

◆ The armrest tube adopts a national standard steel pipe with a diameter of 42mm and a wall thickness of 3mm. It is connected to the two main shelves with 20mm*30mm and 2mm of the wall thickness.

◆ The plate surface is made of a steel plate with a thickness of 2.2mm. The four corners of the corner R5, the surface rushing stocks increase the intensity, the surface and the main frame are riveted with stainless steel pull rivets;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, which can be used only 1 person;

◆ Equipment columns are buried in depth of not less than 400mm, and the size of the ground is not less than 400*800*500mm;

◆ The equipment adopts a fully automatic CNC sawing bed, which is highly efficient and accurate. Skinidity treatment is performed before the equipment is welded to ensure that the surface of the workpiece has no oil and pollution. Follow and equip the dust collection and treatment system to purify the air of the workshop to ensure the health of the workers. The surface treatment uses the shot shot shot, which is thoroughly removed, the surface area of the workpiece is increased, and the plastic powder attachment is enhanced. Imported electrostatic spraying equipment, uniform powder out, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and acid rain environment. The cyclone centrifugal powder pink recovery system can reach 98.6%, saving powder to reduce dust pollution, convenient operation, energy saving and environmental protection;

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.

Production process

Raw
Material
