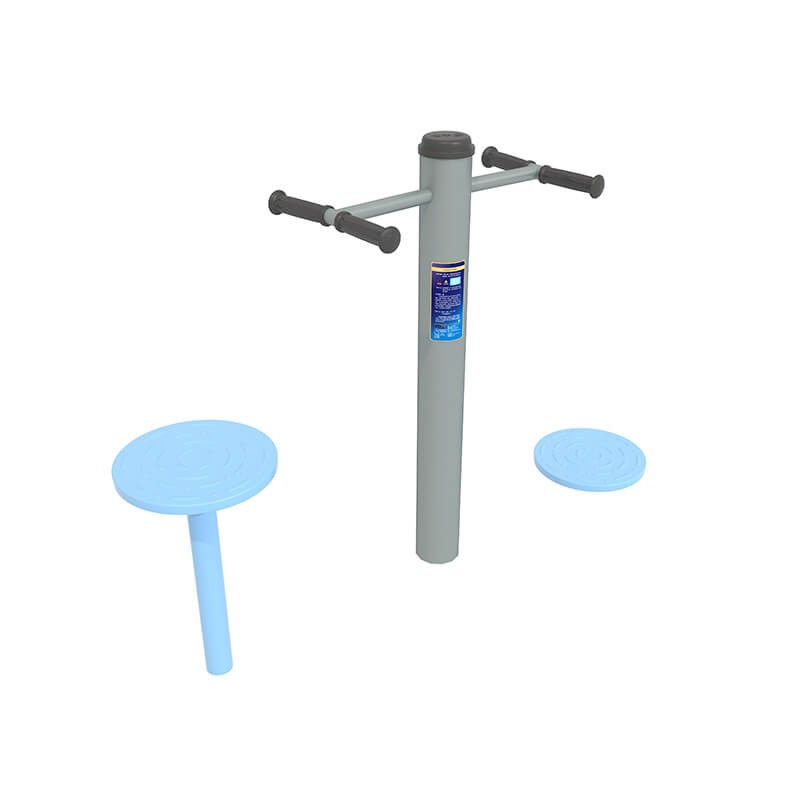

Sit and twist the waist GYX-L44 Company

Specification:

GYX-L44

[Specification]: 1700 × 350 × 1019 (mm)

[Scope of safe use]: 4700 × 3350 (mm)

[How to use]: Tighten your handle with your hands, balance your feet on a circular pedal or squat on the turntable plate, and the waist force drives the lower limbs or the body to twist left and right.

[Main function]: Enhance the strength of the waist and abdominal muscles, improve the flexibility and flexibility of the lumbar and hip joints, and conducive to bodybuilding. A large -scale turning waist activity can relax the waist muscles, which can promote the smooth and blood of qi and blood. The effect of strong waist and kidney is suitable for waist activity disorders, weak kidney deficiency, lumbar muscle strain, and fatigue.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The handrail is welded with a national standard steel pipe with a diameter of 32mm and a wall thickness of 3mm;

◆ The seat is 4mm thick -cold plate stamping to ensure 8 years of service life, 300mm diameter, 22mm height, downturn in the peripheral round corner R2. R2, the surface is rough and anti -slip, avoiding the danger of slipping off;

◆ Use the damping structure inside the waist to control the rotation speed to ensure the personal safety of the user. The bearings use 4 high -quality 6205 bearings and the diameter of the middle rotation is 25mm to ensure the use requirements;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column. Avoid hook damage;

◆ Equipment conducts relevant static load, stability and fatigue test in accordance with the GB19272-2011 standard, and meets the standard requirements;

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ The main column of the equipment is not less than 500mm, the burial size is not less than 500*500*600mm, the backpack and seat column burial depth is not less than 400mm, and the burial size is not less than 400*400*500mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
