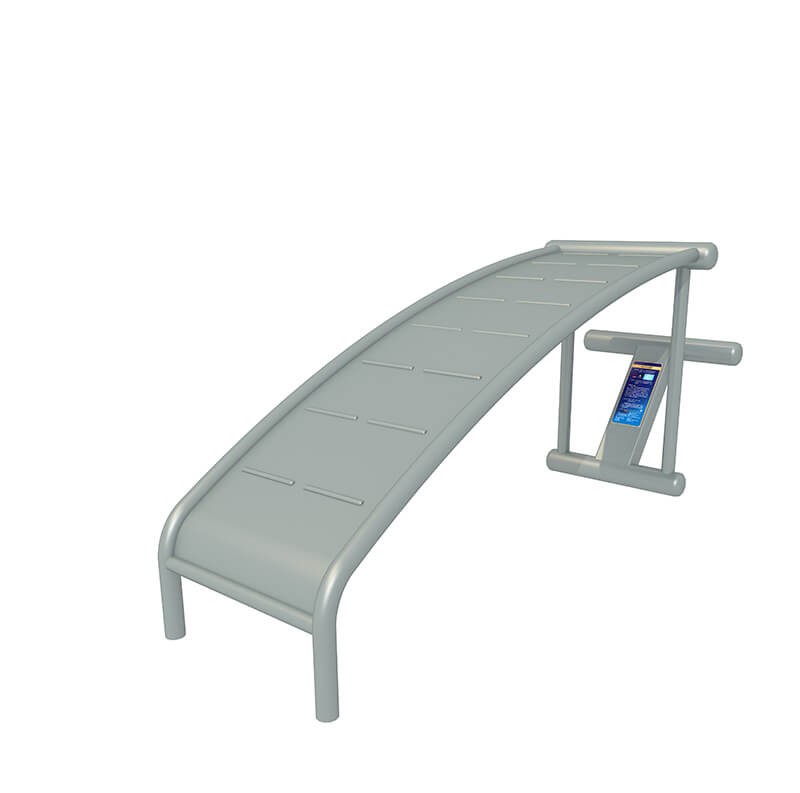

Single sit-up board GYX-L33A

[Specification]: 1436 × 430 × 598 (mm)

[Scope of safe use]: 4500 × 3430 (mm)

[How to use]: The practitioner is lying on the device, his feet are clenched by the horizontal rod, the hands are crossed to protect the head behind the head, the abdominal muscles are contracted to lift the body, and the abdominal muscles continue to lie down slowly when restored. Repeat action.

[Main functions]: Enhanced the strength and elasticity of the waist and abdomen muscles, which is obvious for eliminating excess fat in the abdomen. It is a must -have for weight -shaping and bodybuilding body.

【The main technical parameters】:

◆ Direct buried type, the plate surface support pipe adopts a national standard steel pipe with a diameter of 32mm and a wall thickness of 3mm. The layout uses a cold plate with a thickness of 2.2mm thick, which is fully welded with the support pipe. Items

◆ The first three horizontal pipes use a national standard steel pipe with a diameter of 60mm and a thickness of 2.75mm, 400mm in length, welding caps at both ends, closed and long -lasting;

◆ The support pipe adopts a national standard steel pipe with a diameter of 32mm and a thickness of 3mm,

◆ The tinker pipe uses a national standard steel pipe with 50*100*2.5 to avoid stepping on and deforming;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ Equipment columns are buried in depth of not less than 400mm, and the size of the ground is not less than 400*750*500mm;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.

•
