Specification:

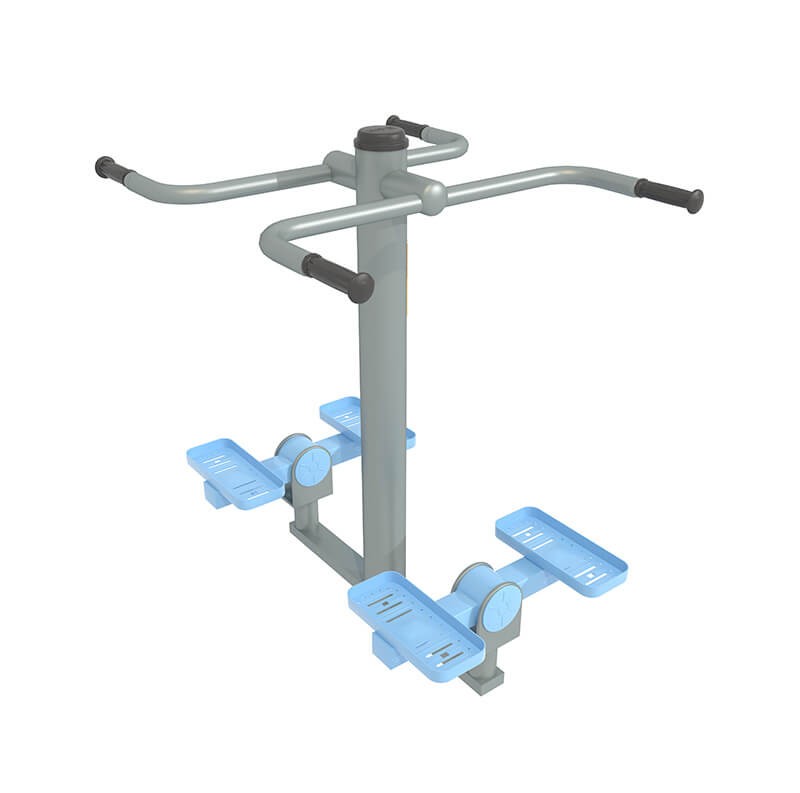

GYX-L24 Stepper

【Specification】: 1133 × 902 × 1300mm

[Scope of safe use]: 4200 × 3900 (mm)

[How to use]: The practitioner holds the handle of the twist -waist step with both hands, and his feet stand on the pedal, raising your chest, look ahead. With both feet, you can move up and down, and your arms move to the hip, shoulder joints, and cervical spine.

[Main functions]: Enhance the muscles of the waist, legs and shoulder joints in the waist, legs and shoulder joints, improve the flexibility and flexibility of hip joints, spine joints, shoulder joints and cervical spine. Long -term exercise can effectively improve the endurance and respiratory system of cardiovascular The function of increased lungs and improved aerobic exercise capabilities.

【The main technical parameters】:

◆ Straight buried, the main pillars adopt a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The left and right handrail adopts a variable diameter with a diameter of 42mm and a wall thickness of 3mm. The beam is connected to the main column with a diameter of 76mm and a wall thickness of 3mm. An accident occurred by the user. The hand armrest handle was used to reduce the pipeline technology to shrink the pipe with a diameter of 42mm to 32mm in diameter to install the handle. This method is good, beautiful in appearance, convenient processing, and durable;

◆ The horizontal tube of the pedal adopts 60*60*2mm national standard pipe, and the pedal is 4mm thick cold plate stamping to ensure the 8 -year service life and have anti -skid measures to avoid the harm of the personnel from stepping on slipping. Circle rounded corner R2 to avoid personal damage;

◆ Limit the three -sided impact internal limit of full casting steel, increase the area of force, and use polyurethane materials for impact pads. , Limit the thickness of the side board is 8mm, the diameter of the limited level is 133mm, the length is 80mm, and the thickness is 8mm.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The top of the column is closed, and the buckle is stamped with a 2mm thick steel plate. There is a Gui Yuxing logo on the top to avoid entering the rain;

◆ The handlebar is made of PVC, and the feel is easy to resist. There are anti -theft measures to be safe and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column.

Avoid hook damage;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, and only 2 people can be used at the same time;

◆ The depth of the equipment is not less than 500mm, and the size of the land is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
