Outdoor gym equipment Surfboard GYX-L09B Manufacturer

Specification:

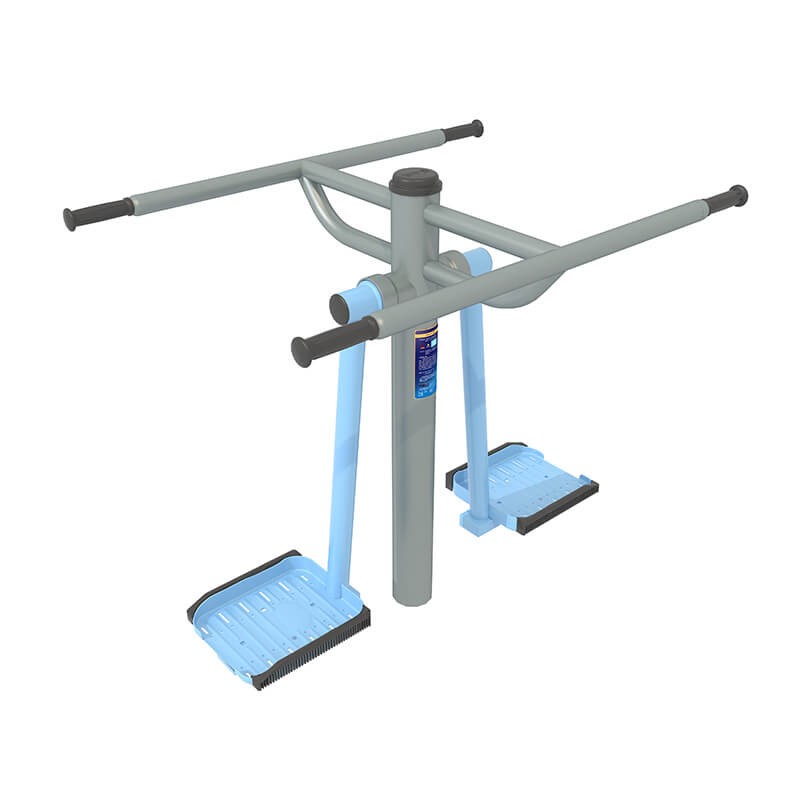

GYX-L09B Surfboard

【Specification】: 1206 × 902 × 1223mm

[Scope of safe use]: 4200 × 3950 (mm)

[How to use]: Hold the handle with both hands, step on the pedal at the same time, and do the left and right swing movements.

[Main functions]: Enhance cardiopulmonary function, lower limb and waist muscles; improve the flexibility and coordination ability of the lower limbs; provide joint stability of the lower limbs.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm is adopted. The handrail is used to shrink the pipeline technology to shrink the pipe with a diameter of 42mm to 32mm in diameter to install the handle. The durable durability, the support pipe uses a diameter of 32mm, a wall thickness of 2.5mm national standard steel pipe;

◆ The pedal is 4mm thick steel plate stamping to ensure 8 years of service life, and the circular angle R2 in the circle to avoid personal injury;

◆ Limitation uses the inner limit structure of cast steel, and the impact pad is made of polyurethane material. It anti -impact, good elasticity, anti -aging, high and low temperature, maximum outer round size is 102mm, wall thickness is 5mm, shaft end and column welded, suits With leg welding, 4 high -quality 6007 bearings are used, and the diameter of the middle rotation shaft is 35mm to ensure the impact test requirements. The one -sided swinging angle of the left and right swinging angles is less than 65 degrees.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The pedal is stamped with a 4mm thick steel plate. The non -slip device is equipped at the foot of the feet. The height of the non -slip platform is not less than 30mm. Avoid the slippery of the personality and cause the person to hurt the person. Personal damage;

◆ The top of the column is closed, and the buckle is stamped with a 2mm thick steel plate. There is a Gui Yuxing logo on the top to avoid entering the rain;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 220*80mm, the pull rivets are strong, and the edges are close to the column.

Avoid hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 2 -stop movement, but 2 people can be used at the same time;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
