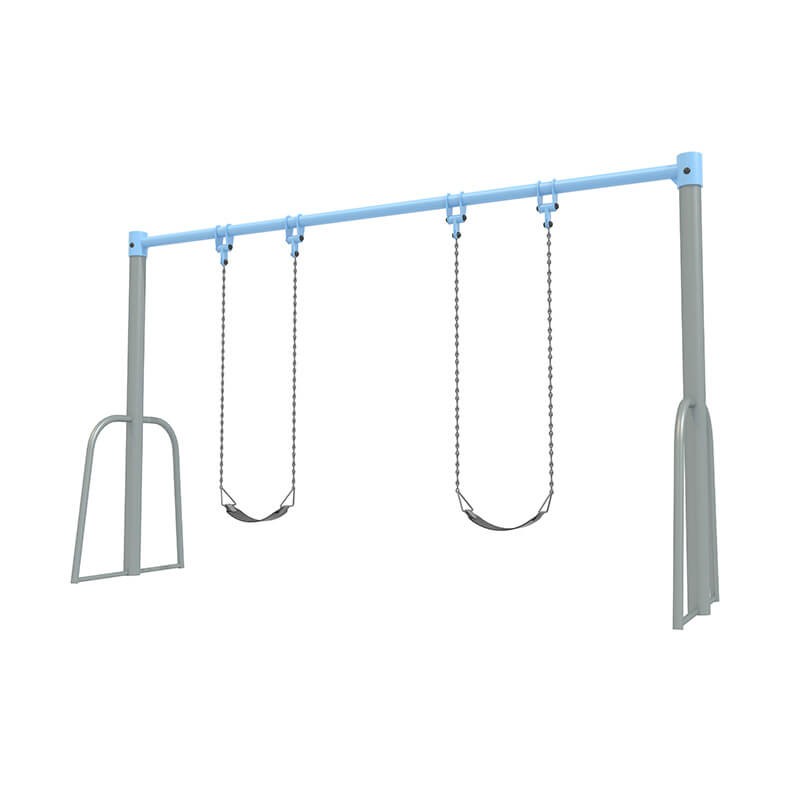

Swing GYX-L43B Supplier

Specification:

Gyx-l43b autumn thousand

[Specification]: 3945 × 995 × 2404mm

[Scope of safe use]: 6950 × 4000 (mm)

[How to use]: The user helps Qiu Qianzhong, sitting on the seat plate, and swinging the Qiu Qian before and after helping. The user is swinging back and forth with the rhythm of the inertia.

[Main functions]: Enhance the overall coordination ability of the user and enhance the muscle strength of the waist and abdomen.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The national standard steel pipes with a diameter of 76mm and a wall thickness of 3mm are mainly carried on the beam.

◆ The connection between the beam and the swing swinging chain is connected with a shaft, the diameter of the turning shaft is 25mm, and the length of the connection point of the flexible parts and the rigid swing rod is 120mm. The distance is 600mm;

◆ The middle space between the iron chain and the iron chain is not greater than 8mm, avoid hurting the finger;

◆ The surface of the seat is a non -slip structure on the surface of the rubber material. The rigid component is connected to the iron chain, and the closed cycle of the rigid parts is greater than 30mm;

◆ The bearing suits are all 60mm in diameter, 7mm in wall thickness, and the bearings are high -quality 6205 bearings;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ Equipment nameplate is corroded with full stainless steel, with a size of 220*80mm. The pull rivets are strong, and the edges are close to the column to avoid hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has 2 movements, and 2 people can be used at the same time;

◆ Equipment columns are buried in depth of not less than 600mm, and the size of the ground is not less than 500*1500*700mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
