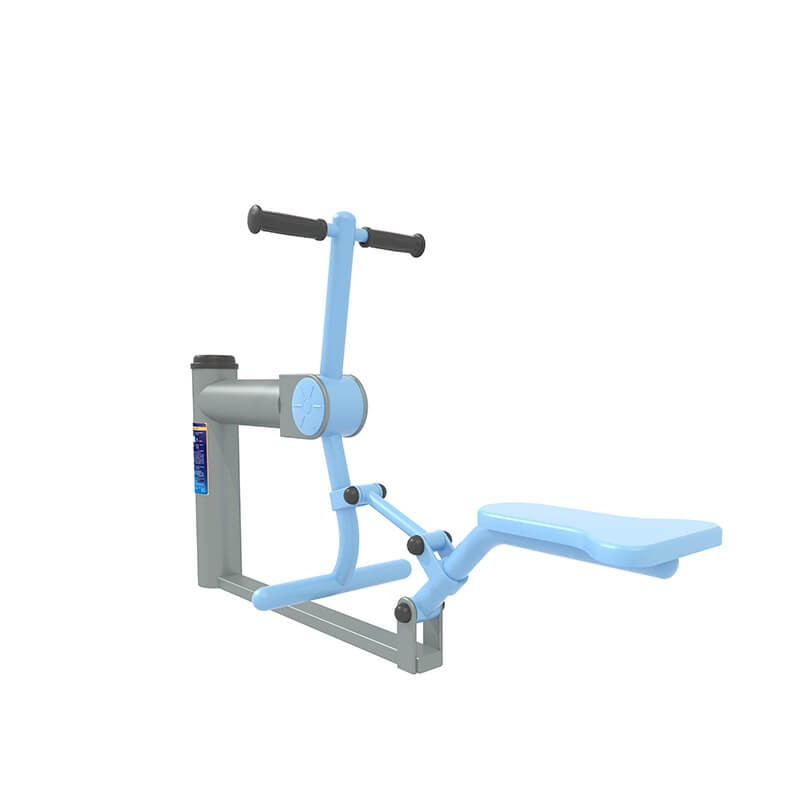

The Rider GYX-L42A Manufacturer China

Specification:

GYX-L42A healthy rider

[Specification]: 1371 × 520 × 906 (mm)

[Scope of safe use]: 4500 × 3550 (mm)

[How to use]: Sit on the seat holding the handle with both hands, stabbing the pedal with both feet, kicking down, and pulling backwards.

[Main function]: Enhance cardiopulmonary function and improve the ability of upper limbs, waist, abdomen, legs, back muscle strength and limb coordination.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The national standard steel pipe with a diameter of 48mm and a wall thickness of 3mm is adopted;

◆ The upper part of the equipment is connected to the main pillar with a national standard steel pipe with a diameter of 88mm and a wall thickness of 3mm. The seated plate and the lower end of the column are connected with a 60*30*2mm rectangular tube to form a solid whole, which makes the equipment overall uniform, firm and durable, and durable. Items

◆ The national standard steel pipe with a diameter of 48mm and a wall thickness of 3mm is used to set up a tube and trampled pipe. There is a non -slip mechanism at the foot of the foot stepping on the foot.

◆ Sitting board for 4mm thick cold plate stamping to ensure 8 years of service life and rounded corner R2 in the circle to avoid personal injury;

◆ The distance between the bearing cards and the axis cover of each place is greater than 30mm, avoid hurting the finger;

◆ All bearing sets are 60mm in diameter and 7mm in wall thickness. The bearing uses high -quality 6205 bearing, and the diameter of the rotation shaft is 25mm;

◆ Limit the three -sided impact internal limit of full casting steel, increase the area of force, and use polyurethane materials for impact pads. , Limit the thickness of the side board is 8mm, the diameter of the limited level is 133mm, the length is 80mm, and the thickness is 8mm.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The handlebar is made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures to be safe and durable;

◆ The column hat uses external buckle type to avoid entering the rain;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, and only one person can be used at the same time;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
