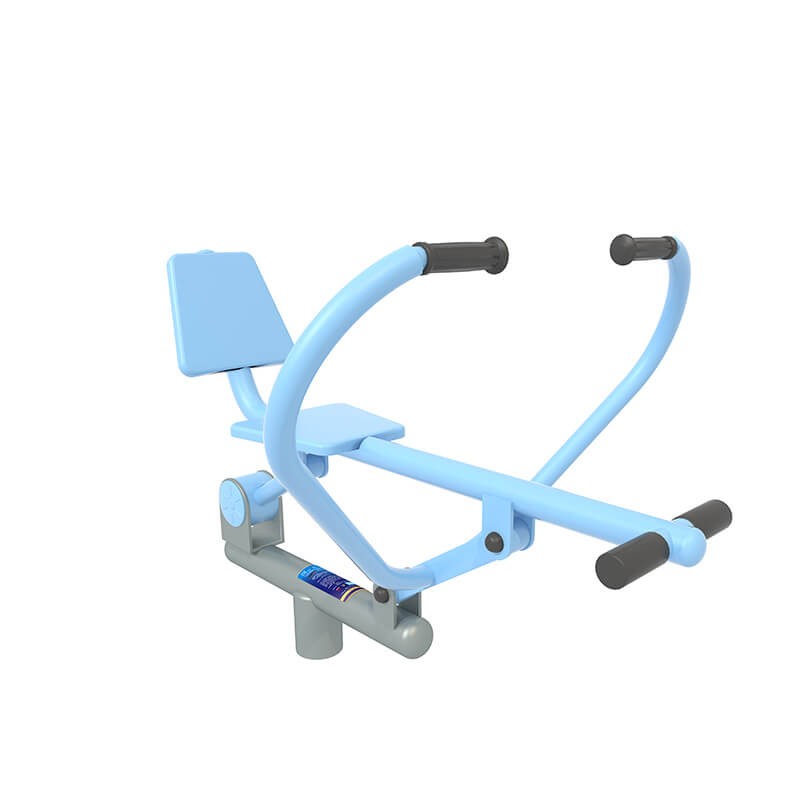

The Rower GYX-L38A Wholesaler

Specification:

GYX-L38A The Rower

[Specification]: 1225 × 1013 × 1058 (mm)

[Scope of safe use]: 4300 × 4050 (mm)

[How to use]: The practitioner is sitting on the rowing ware, pedaling pedal, raising his head, holding your chest, and abdomen, and your eyes are looking forward. Try to stretch the upper body as much as possible, grab the hands in front of your hands, pull your hands backwards while leaning back, and do his arms for rowing telescopic exercise.

[Main functions]: Exercise the flexibility and coordination ability of the human arm, waist, legs and other parts.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The main frame horizontal pipe adopts a national standard steel pipe with a diameter of 88mm and a wall thickness of 3mm. The diameter of the linked rod is 48mm and the wall thickness is 3mm.

◆ The cross -chair horizontal tube adopts a national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm. The pedal rod is 60mm in diameter and 3mm wall thickness. A non -slip device is provided at the foot of the feet.

◆ Limit the three -sided impact internal limit of full casting steel, increase the area of force, and use polyurethane materials for impact pads. , Limit the thickness of the side board is 10mm, the diameter of the limited level is 133mm, the length is 80mm, and the thickness is 8mm.

◆ Use a cold plate with a thickness of 4mm in a cold plate for molding, and the chamfer of the peripheral R2 to avoid scratching danger;

◆ The armrest tube curved adopts a national standard steel pipe with a diameter of 42mm and a wall thickness of 3mm. The shaft sleeve connector adopts a national standard steel pipe with a specification of 50*50*2.5mm. Connected to the main stand with 4 6004 bearings, and the shaft connectors are closed.

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The thickness of all connecting board walls of the equipment is not less than 8mm;

◆ The handlebar is made of vulcanized rubber, which is good for anti -aging. There are also anti -theft measures to be safe and durable;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ The equipment is conducted in accordance with the GB19272-2011 standard to conduct relevant static load, stability and fatigue test, and meet the standard requirements.

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability tests are tested, and the standard requirements are met.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, which can be used by 1 person;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.
