Outdoor fitness equipment Triple Air Walker GYX-L13C Price

Specification:

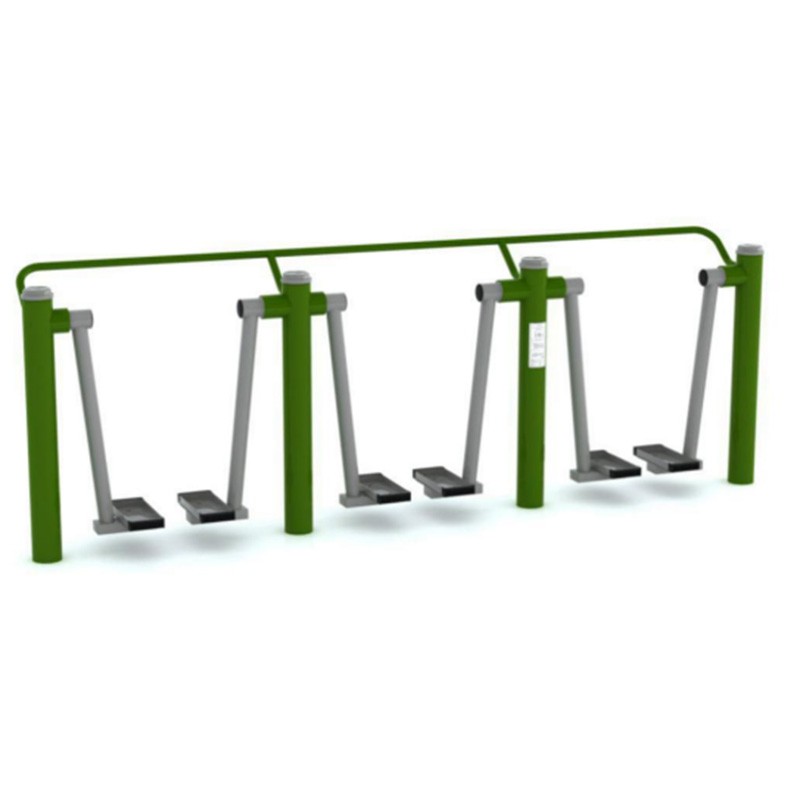

GYX-L13C Triple Air Walker

[Specification]: 3174 × 580 × 1050 (mm)

[Scope of safe use]: 6200 × 5600 (mm)

[How to use]: Hold the horizontal rod with your hand, stand on the pedal, raise your chest and stand upright. Both legs are imitated straight and swinging naturally, and you can adjust the strength by adjusting the amplitude and frequency of swing.

[Main functions]: Enhance cardiopulmonary function, lower limb and waist muscles; improve the flexibility and coordination ability of the lower limbs; provide joint stability of the lower limbs. It has a rehabilitation effect on lumbar muscle strain, sore hip joint, disorder of lower limb movement, muscle weakness, and muscle atrophy.

【The main technical parameters】:

◆ Direct buried type, the main column adopts a national standard steel pipe with a diameter of 114mm and a wall thickness of 3mm;

◆ The national standard steel pipe with a diameter of 60mm and a wall thickness of 3mm is adopted. The spacing of the swing arm and the column is greater than 60mm.

Board directly welded, firm and durable;

◆ The pedal is 4mm thick cold plate stamping to ensure 8 years of service life and have anti -slip measures to avoid stepping on slipping

The enlightenment of the personnel, the two pedal distance is greater than 100mm, the edge height of the pedal perimeter is greater than 30mm, and the circular corner

R2, buffer pads in front and back of the pedal to avoid personal injury;

◆ The armrest tube adopts a national standard steel pipe with a diameter of 32mm and a wall thickness of 2.5mm, which is welded with the column;

◆ Limitation uses the inner limit structure of cast steel, and the impact pad is made of polyurethane material. It has good anti -impact, good elasticity, anti -aging,

High and low temperature, the maximum outer circle size is 102mm, the wall thickness is 5mm, the axis end and column welding, the kit and the leg welding

Use 4 high -quality 6007 bearing, and the diameter of the middle rotation shaft is 35mm to ensure the impact test requirements. Limit the left and right swing

The angle of the unilateral swing is less than 65 degrees, and the outflow of the exposed edges is all R3, reducing the collision damage;

◆ The whole machine bearing waterproof ring adopts a special skeleton oil seal waterproof ring. It has good closedability, waterproof and dustproof, and durable;

◆ The top of the column is closed, and the caps of the cap are stamped with 2mm thick steel plate.

Avoid entering rain;

◆ The nameplate of the equipment is corroded with full stainless steel, the size is 185*80mm, the pull rivets are strong, the edges are close to the column to avoid causing hook damage;

◆ The equipment has a three -site movement, but 3 people can be used at the same time;

◆ Equipment conducts relevant static load, stability, impact and fatigue test in accordance with the GB19272-2011 standard, and meets

standard requirement.

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets GB19272-2011

standard;

◆ Equipment columns are buried in depth of not less than 500mm, and the size of the ground is not less than 500*500*600mm;

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine, the corner

The extent is accurate and beautiful. Before the equipment is welded, the abandoned treatment is performed to ensure that the surface of the workpiece has no oil stains and welded

The carbon dioxide protection welding machine is welded with mixed gas, the welding shape is beautiful, the welding tract is straight, no need to polish,

And equipped with a dust collection and treatment system, purify the air in the workshop, ensure the health of the workers, and the surface treatment is tossed

Pill craftsmanship, thorough rust removal, increase the surface area of the workpiece, enhance the adhesion of the plastic powder, the green ring of the Forbidden City on the outside

Static electric powder, uses imported static spraying equipment, is uniform out of the powder, strong powder adhesion, plastic surface resistance to acid and alkali,

Hydne -resistant, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and acid rain environment, the coating formula of the product is not

Contains toxic elements, powder recycling adopts a whirlwind centrifuge powder pink recovery system, and the recovery rate can reach 98.6%, saving

Powder reduce dust pollution, convenient operation, energy saving and environmental protection;

◆ Equipment packaging is an internal thickened air bubble film wrapping, two -layer packaging with an external packaging with wrapped, effectively blocking transportation

The middle class produces bumps to make the equipment intact
