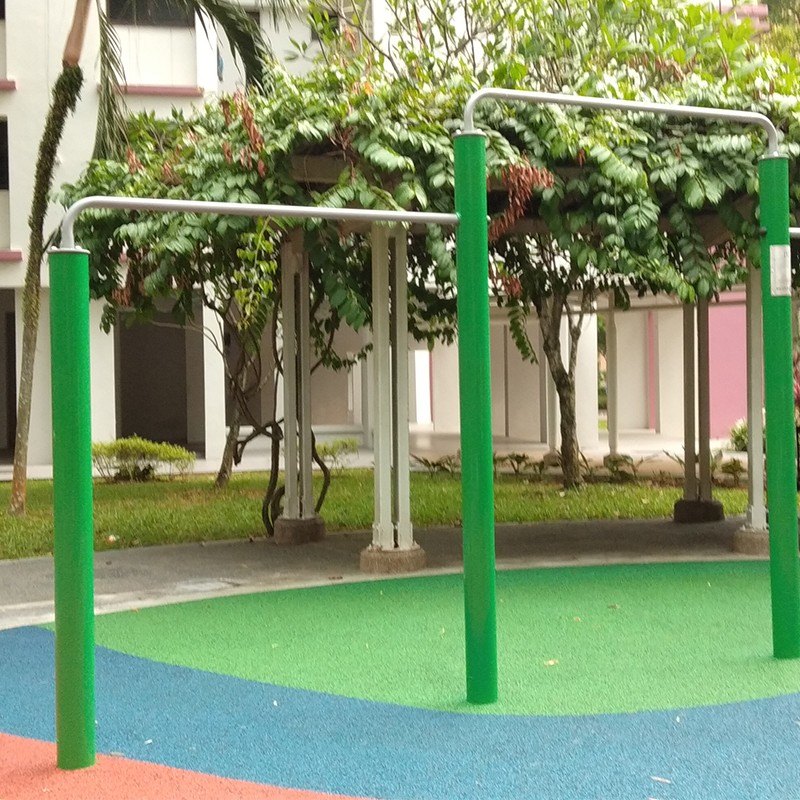

Outdoor fitness equipment uneven bars Factory

Specification:

Name: Uneven bars

Model: gyx-l15

Specification: 1525x125x2130 (mm)

Scope of safe use: 5500x4000 (mm)

How to use: Hold your hands on your hands, pull the handle or hold the handle of the handle, pull up the force, ease and slow down, and repeat the movement. (Note: Try to reduce the body's shaking, use the method of holding the thumb and other four fingers when the handle is gripped)

Main functions: Enhance the strength and flexibility of the upper limbs, back, shoulder strap muscle groups; improve the ability of shoulder, elbow, wrist, and joint movement.

【The main technical parameters】:

◆ Direct burial, the main column adopts a standard international steel pipe with a diameter of 114mm and a wall thickness of 3mm.

3.25mm seamless steel pipe;

◆ The effective use of the horizontal bar is 1220mm, and the center of the two main columns is 1400mm;

◆ The column connection is connected with a disc, three M12 stainless steel anti -theft bolts are strong, and the surface of the bolt is applied to the anaerobic and fastener glue. ; The upper part of the horizontal bar is 180mm at the bottom of the disc,

◆ The thickness of the buffer layer is 300mm, which is safer and reliable to avoid accidental damage;

◆ Equipment columns are buried in depth of not less than 900mm, and the size of the ground is not less than 600*600*1000mm;

◆ The nameplate of the equipment is corroded with full stainless steel, with a size of 220*80mm, sturdy rivets, and the edges are close to the column to avoid causing hook damage;

◆ There is no hook, no crushing point, no shear point, no card clip, the gap between the pores and diameters of each place meets the GB19272-2011 standard;

◆ The equipment has a 1 -stop movement, and only one person can be used at the same time;

◆ The equipment is tested in accordance with the GB19272-2011 standard, and stability stability tests are available, and the standard requirements are met.

◆ The equipment uses a fully automatic CNC sawing bed, which is highly efficient and accurate. The bending process uses a CNC bending machine. The angle is accurate and beautiful. Mixed gas welding, beautiful welding shape, straight welding tract, no need to polish, and equipped with dust collection and treatment systems, purify the air of the workshop, ensure the health of workers, the surface treatment uses the throwing process, thorough rust removal, increase the surface area of the workpiece, enhance the enhancement Plastic powder adhesion, outer surface of the Forbidden City Green Environmental Protection Static Powder, using imported static spraying equipment, uniform powder, strong powder adhesion, plastic surface resistance, dampness and heat, anti -aging, corrosion resistance, beautiful appearance, suitable for humidity and sour rain Environment, the coating formula of the product does not contain toxic elements. Powder recovery uses a whirlwind centrifugal machine powder recovery system.

◆ Equipment packaging is the internal thickened air bubble film entangled, and the external packaging with two -layer packaging with wrapped wrapped, which effectively blocks bumps in the transportation to cause the equipment to be intact.

Production process

Raw
Material
